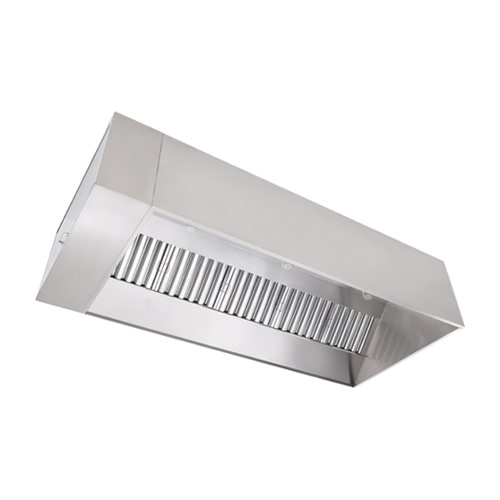

CaptiveAire SND-2 Exhaust Only Exhaust Hood
The SND-2 series is a type I, sloped wall canopy hood for use over 400°F and 600°F cooking surface temperatures.
- Exhaust Flow Rates: Superior exhaust flow rates.
- ETL Listed: ETL listed for use over 400°F and 600°F cooking surface temperatures, which provides flexibility in designing kitchen ventilation systems. ETL listed to US and Canadian safety standards, ETL sanitation listed and built in accordance with NFPA 96.
- Capture and Containment: Insulated, double-wall rigid front has aerodynamic design that reduces radiant heat into kitchen, prevents condensation and provides exceptional capture and containment of cooking vapors. The signature “mechanical baffle” on the front of the hood’s capture area is available on 18″ front model only. The mechanical baffle provides a built-in wiring chase for optimal positioning of electrical controls and outlets on the front face of the hood without penetrating capture area or requiring external chase way.
- Convenient Design: Factory pre-wired lighting to illuminate the cooking surface is accessible from the bottom of the hood. Fitted with UL listed, pre-wired, incandescent light fixtures and tempered glass globes to hold up to a standard 100 watt bulb. Pre-punched hanging angles on each end of hood and additional set provided for hoods longer than 12′.
- Construction: Polished stainless steel on the interior and exterior of the front enhance aesthetics. Fully welded and polished front corners. Fabricated from type 430 stainless steel with option of type 304 available. Sloped front for low ceiling applications.
- Grease Extraction: All hoods come standard with stainless steel baffle filters and a deep grease trough which allows for easy cleaning. Captrate Combo® and Captrate Solo® filters are optional. Grease drain system with removable 1/2 pint cup for easy cleaning. Standard filter stops eliminate gaps between filters.
- Reduced Lead Times and Shipping Costs: Produced on a high volume assembly line at one of five manufacturing facilities to reduce lead times and shipping costs.
- Controls: Hoods can be equipped with modular utility cabinets and end standoffs. Optional listed light and fan control switches flush mounted and pre-wired through electrical chase way.
- Reduced Weight: Rigid single wall end panels reduce weight.
- Optional Make-Up Air: Make-up air can be supplied through optional front and/or side plenums (ND-2 Series with PSP or AC-PSP Accessory).
