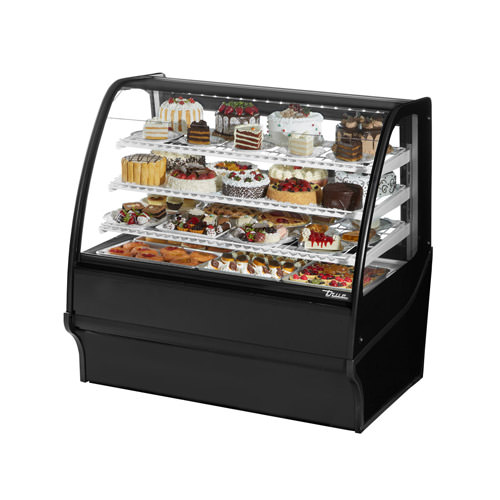

True TDM-R-48-GE-B 48″ Black Curved Glass 2 Door Floor Refrigerated Bakery Case
Enter email to get a special price.
True’s refrigerated display merchandisers combine efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end desserts and pastries.
Design – True’s refrigerated display case combines efficient, high volume merchandising and exceptional refrigeration with an elegant curved glass front for sophisticated presentation of high end deli, desserts and pastries.
Designed to provide an attractive companion to our TDM-DC “dry case” display merchandiser.
Refrigeration System – Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
Exclusive reversing condenser fan motors. Fan motors reverse during defrost off cycles to help keep condenser coil free from dirt, dust and debris. Keeping coils clean optimizes the unit’s performance providing colder holding temperatures and increased energy efficiency. Regularly scheduled thorough cleaning of coils still recommended.
High capacity, factory balanced refrigeration system that has two (2) temperature range options. Standard temperature range maintains cabinet temperatures of 33°F to 41°F (.5°C to 5°C), ideally suited for refrigerated bakery and cold deli products. Optional temperature range maintains cabinet temperatures of 42°F to 65°F (5.5°C to 18.3°C), ideally suited for chocolate & wine options.
Pull Out Condensing unit slides out for easy cleaning and maintenance.
Cabinet Construction – Exterior – powder coated FDA black rounded front and back, black aluminum aesthetic side and front panels. Color options available (upcharge may apply) – white or stainless.
Curved glass front and side glass panels.
Interior – powder coated FDA white over CRS material. Color options available (upcharge may apply) – black or stainless.
Insulation – entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
Frame rail fitted with leg levelers.
Curved Front Display Case – Curved glass front and side panels are single pane tempered glass. Front glass opens from closed to fully open to provide extra large viewing area to maximize product presentation while allowing full frontal access.
Rear Doors – Two (2) rear sliding glass doors for back access.
Each door fitted with 12″ (305 mm) long aluminum handle.
Sliding doors ride on stainless steel V-channel with stainless steel bearings. Doors fit within plastic channel frame.
Shelving – Three (3) adjustable heavy duty PVC coated wire shelves standard.
Each shelf supports a maximum weight of 150 lbs. (69 kg).
Pan Capacity – Cabinet holds four (4) 18″L x 26″D (458 mm x 661 mm) display pans, two (2) 9″L x 26″D (229 mm x 661 mm) display pans and six (8) 12″L x 18″D (305 mm x 458 mm) display pans. Pans supplied by others.
Lighting – LED interior lighting, two (2) clips underneath shelf to keep wires in place. Safety shielded.
Evaporator is epoxy coated to eliminate the potential of corrosion.
Front glass swings Up for easy cleaning access.
Pull out condensing unit slides out for easy cleaning and maintenance.
Electronic temperature control.
NSF/ANSI Standard 7 compliant for open food product. Tested and certified for performance at NSF Type II: 80°F (27°C) and 55% relative humidity.
Electrical – Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
