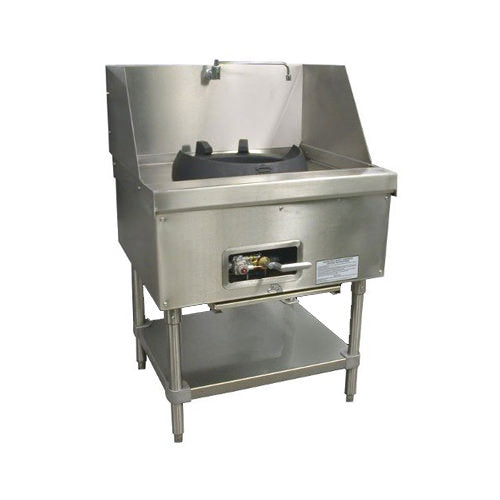

Town Y-5-STD York Five Chamber Propane Gas Chinese Wok Range

SKU: SKU: Y-5-STD-L

Product Description



• Design certified by ETL for conformance to ANSI Z83.11-2007.
• Design certified by NSF and /or ETL for conformance to ANSI/ NSF-4.
• Range Deck Top is 3/16“ steel, black epoxy coated.
• Heavy gauge steel chassis.
• Front panel, Sidesplashes, Backsplashes, & 3 pipe (1” diameter) wok rack are stainless steel. Sides are epoxy coated steel, stainless steel legs with height adjustment “bullets”.
• Each burner has individual main gas control valve- “L” handle for knee operation.
• All valves are solid brass and rated for high temperature operation.
• Front access Integral stainless steel sink (5”) with removable stainless steel strainer basket- 1½” NPT drain connection.
• Full length stainless steel water cooling line for the deck, with control valve.
• 8” wide Stainless steel work/plating shelf.
• All units available with or without flue risers.
• Wide choice of high BTU input burners. Several burners are exclusive Town designs. Jet and ring styles are available. (See Pg 2 for selection.).
• Custom, clog resistant standing pilots with individual control valves.
• Chinese style “Swing Faucet” for each chamber that is easy to replace from the front of the range.
• Faucets are pre-plumbed for ease of installation.
• 1¼” NPT manifold complete with gas pressure regulator.
• Galvanized Drip Tray supplied for each chamber.
• Express: Chambers on fixed 26” centers.
• York, MasteRRange: Custom designs are possible. Contact Town Engineering department to determine if unit can be made to your parameters.
• Snap in “ultralock” screwless backsplash–Makes removal of back and side splashes easy if necessary for installation.
