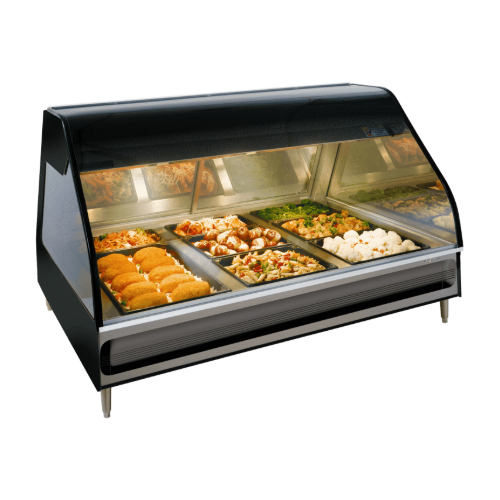

Alto-Shaam ED3-48-208V 48″ Curved Glass Countertop Heated Display Case - 208V

Product Description

• Fanless and waterless Halo Heat technology provides controlled, uniform heat without drying out food.
• Overhead LED lighting and sliding mirrored back doors enhance food appearance to boost impulse sales.
• Equipped with ceramic top heaters and adjustable thermostats ranging from 1 to 10 per heat zone for independent top and bottom heat control.
• Features two distinct heat zones and three pan zones designed to hold standard gastronorm pan sizes.
• Accommodates up to three full-size GN 1/1 hotel pans at 2-1/2 inches or 4 inches deep, or two full-size 18-inch by 26-inch sheet pans.
• Supports a maximum product weight capacity of 48 pounds and a maximum volume of 30 quarts.
• Includes an operator-side work shelf and cutting board for effortless loading and food preparation.
• Designed with a tempered glass front featuring a self-supported lifting mechanism for easy cleaning and access.
• Equipped with removable back sliding doors and side glass panels to reduce labor and cleaning time.
• Available as a countertop model with 4-inch legs and rubber feet or as a stationary base system model ED3(SYS)-48.
• Countertop model exterior dimensions with legs measure 30-3/16 inches high by 48-5/16 inches wide by 43-5/8 inches deep.
• Stationary base model ED3(SYS)-48 exterior dimensions measure 48-5/16 inches high by 48-5/16 inches wide by 47-7/16 inches deep.
• Interior well dimensions measure 27-1/4 inches wide by 45-5/16 inches long by 4-1/2 inches deep.
• The 208V single-phase model operates at 50/60Hz, drawing 11.8 Amps and 2.45 kW.
• The 240V single-phase model operates at 50/60Hz, drawing 13.6 Amps and 3.26 kW.
• The countertop model has a net weight of 297 pounds and a domestic shipping weight of 372 pounds.
• The stationary base model has a net weight of 450 pounds and a domestic shipping weight of 500 pounds.
